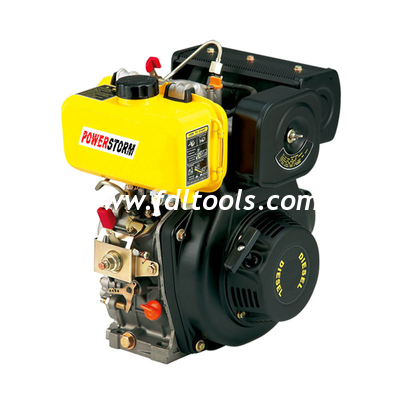

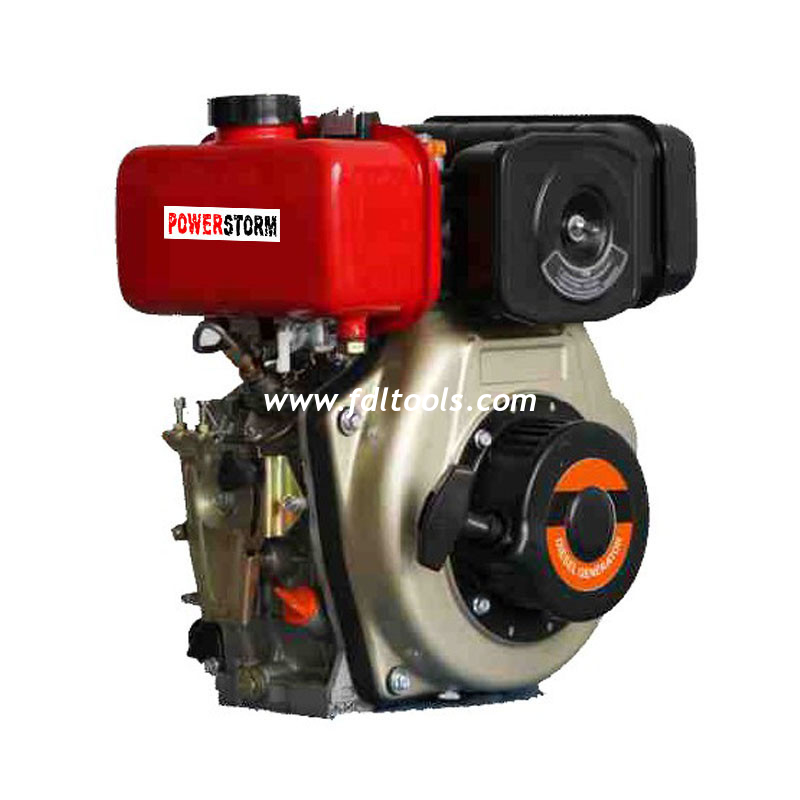

3.8HP 211cc Diesel Engine

3HP & 211cc High Quality Diese Engine

Item number: FT170D

Engine type: 4-stroke, single cylinder, vertical, air-cooled

Bore x stroke: 70x55mm

Displacement: 211cc

Compression ratio: 20:1

Rated torque: 8N.m/3000rpm

Max. output: 2.8KW(3.8HP)/3000rpm, 3.1KW(4.2HP)/3600rpm

Rated output: 2.5KW(3.4HP)/3000rpm, 2.8KW(3.8HP)/3600rpm

Combustion system: direct injection

Starting system: Recoil/electric start

Power take off: crankshaft

Direction of revolution: clockwise (see from PTO)

Fuel tank capacity: 2.5L

Lub. oil tank capacity: 0.75L

N.W./G.W.: 24.5/26.5kgs

Carton size: 460x385x475mm

QTY/Container: 288/20'GP, 600/40'GP, 625/40HQ
